Rough Terrain Forklift

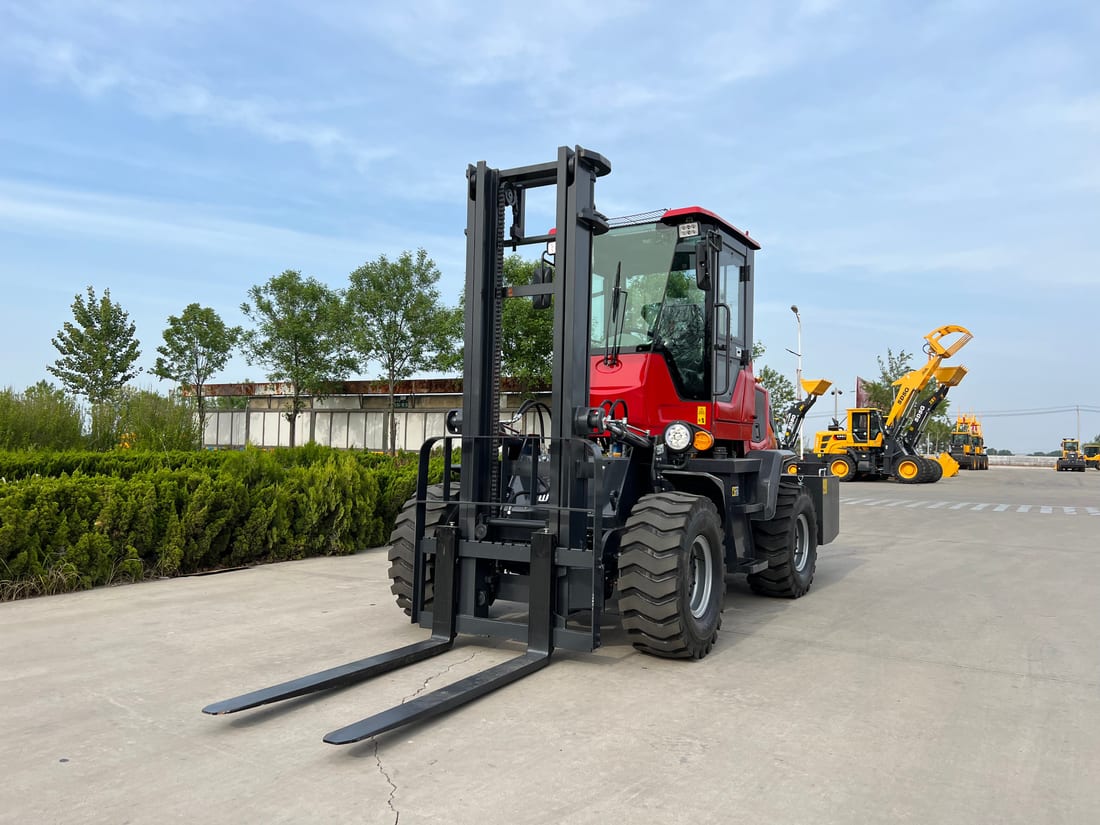

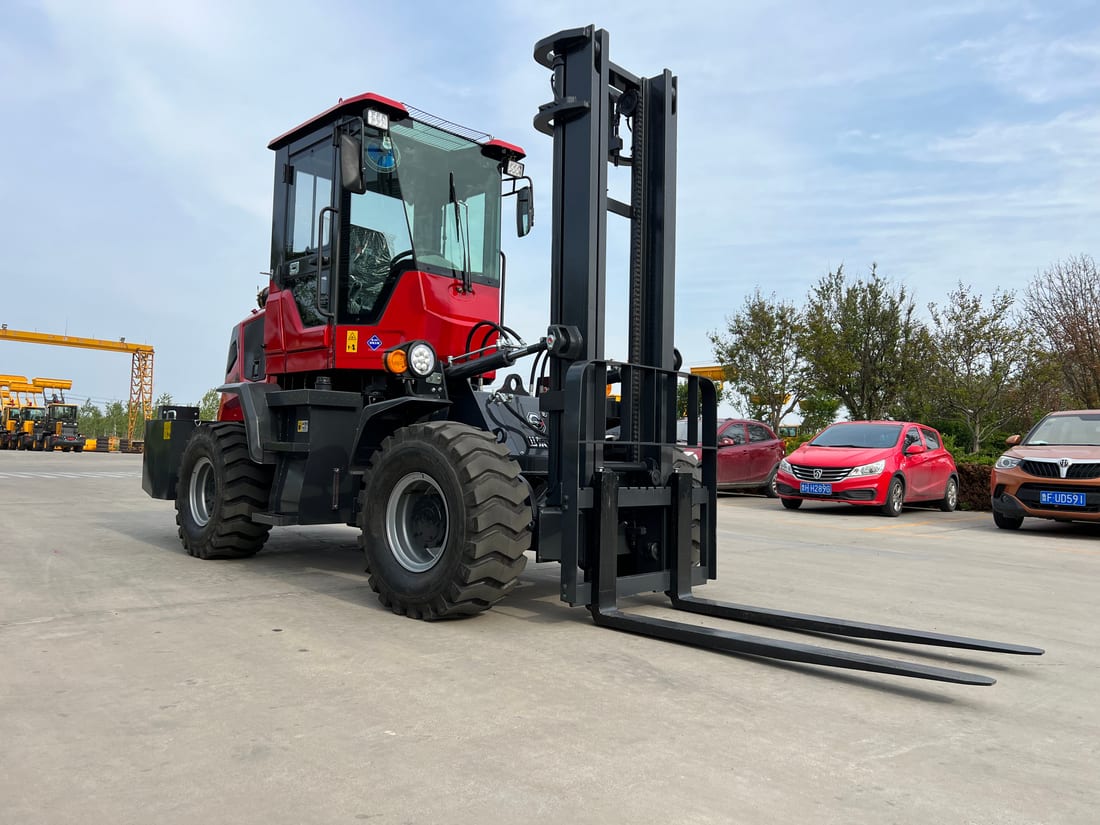

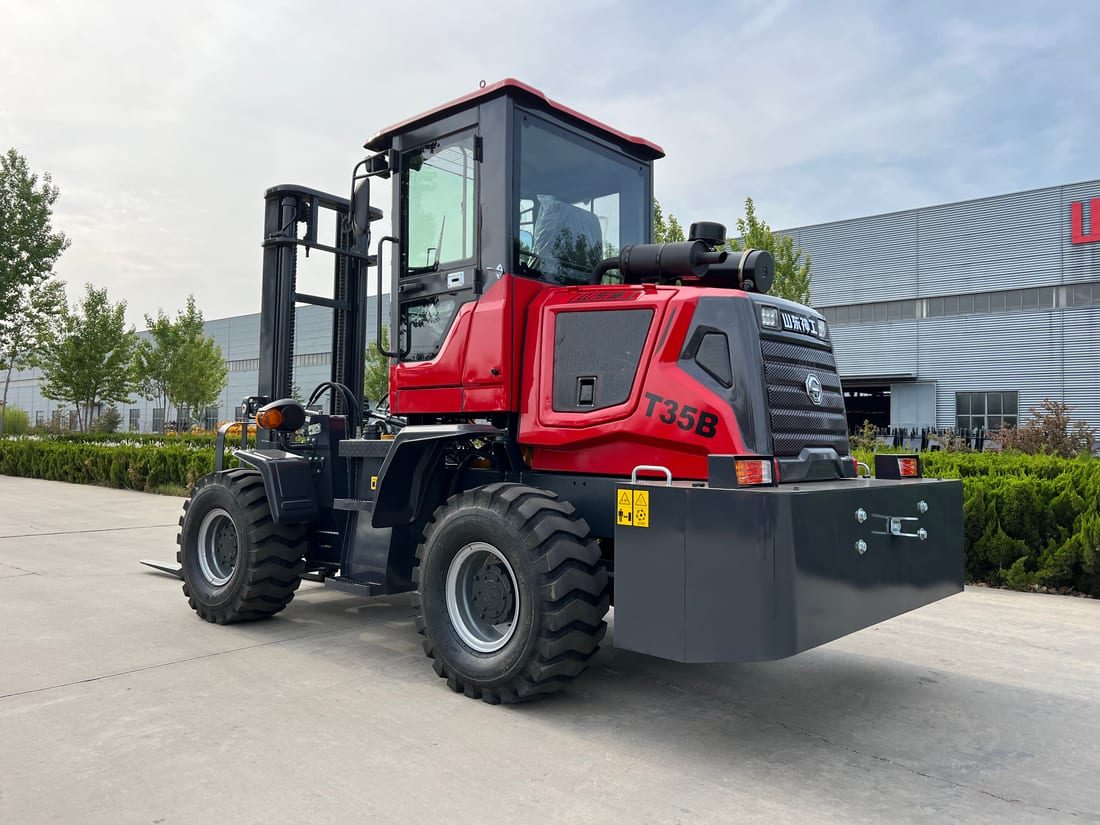

SDSG rough terrain forklifts (also known as off-road, all-terrain or agricultural forklifts) are 4x4 off-road trucks built to handle mud, sand, gravel and slopes where ordinary forklifts get stuck. The range runs from the 3-ton T30B and T35B and the rear-wheel-steer T35R up to the 4-ton T50B and 4.5-ton T-60B, each with full-time four-wheel drive, high ground clearance, a reinforced manganese-steel frame and deep-tread off-road tyres. Yunnei four-stroke diesel engines (58–76 kW) drive a hydrodynamic 2-speed transmission for stable 30 km/h travel and smooth lifting. The compact 2.2 m T30B clears basements, cold stores and containers, while the T-60B accepts quick-change buckets, log grapples and other attachments.
Price range: 6,000–8,100 USD
Key Features
- 4x4 off-road forklifts from 3 to 4.5 tons — T30B / T35B / T35R / T50B / T-60B
- Full-time four-wheel drive with high ground clearance — stable on mud, sand, gravel and slopes
- Yunnei four-stroke diesel engines, 58–76 kW, with hydrodynamic 2F/2R transmission
- Two-stage mast, 3–4 m lift height, 500 mm load centre
- Reinforced manganese-steel frame and deep-tread off-road tyres
- Rear-wheel-steer T35R for a tight turning radius in narrow aisles
- Compact 2.2 m T30B for basements, cold stores and containers
- Quick-change bucket, log grapple and other attachments (T-60B)
Applications
Rough Terrain Forklift — Specifications
| Model | Capacity | Lift height | Engine | Weight |
|---|---|---|---|---|
| T30B | 3000 kg | 3000 mm | 58 kW | 4200 kg |
| T35B | 3000 kg | 3000 mm | 58 kW | 4300 kg |
| T35R (rear-steer) | 3000 kg | 3000 mm | 58 kW | 4250 kg |
| T50B | 4000 kg | 4000 mm | 76 kW | 5900 kg |
| T-60B | 4500 kg | 4000 mm | 76 kW | 7500 kg |
Specifications
| Rated load | 3000 – 4500 kg |
|---|---|
| Model lineup | T30B / T35B / T35R / T50B / T-60B |
| Load centre | 500 mm |
| Lift height | 3000 – 4000 mm (two-stage mast) |
| Engine | Yunnei YN27GBZ / YN38GBZ, 4-stroke diesel |
| Engine power | 58 – 76 kW |
| Drive | Full-time 4WD, wheel-side reducer axles |
| Transmission | Hydrodynamic, 2F / 2R |
| Travel speed | 30 km/h |
| Tyres | Off-road (20.5/70-16, 16/70-20) |
| Brakes | Air brake + mechanical parking |
| Service weight | 4200 – 7500 kg |
