Rock Bolter

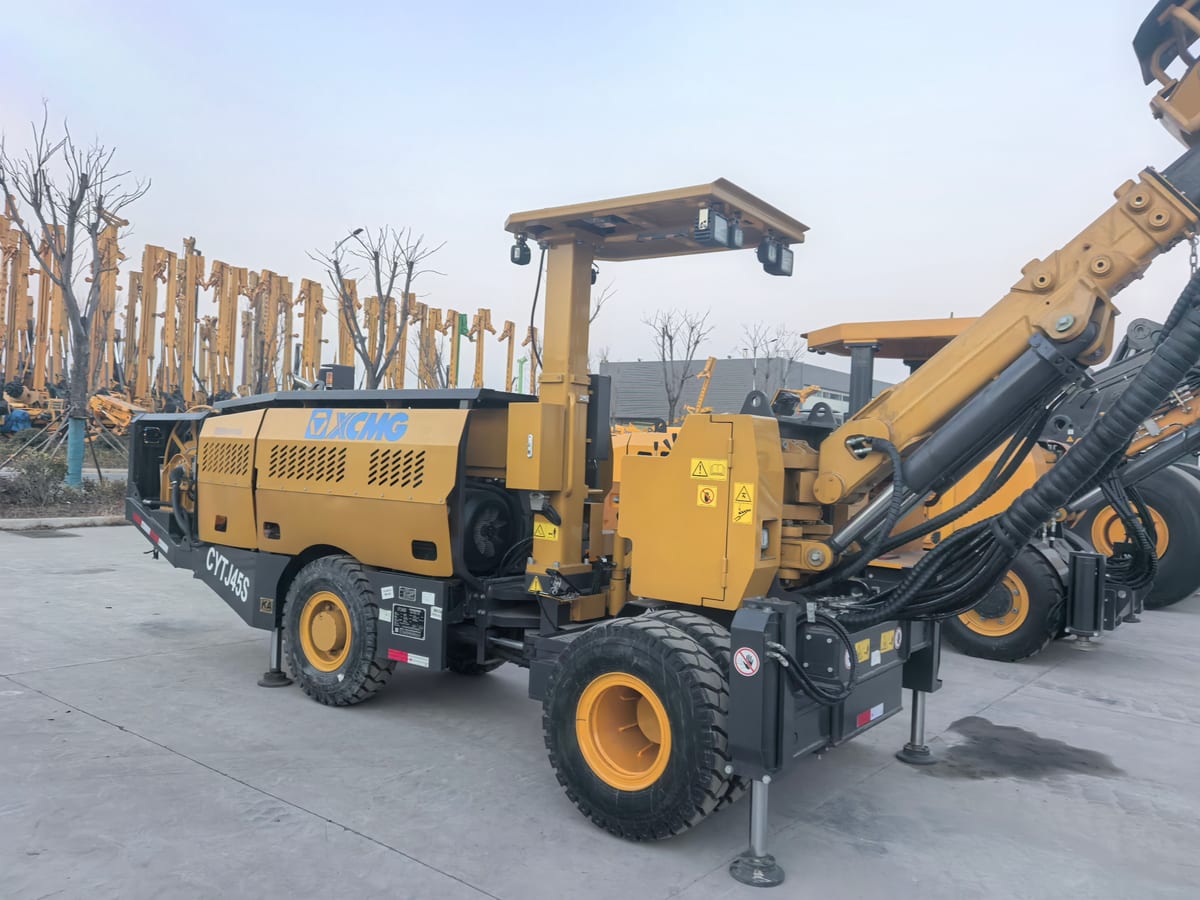

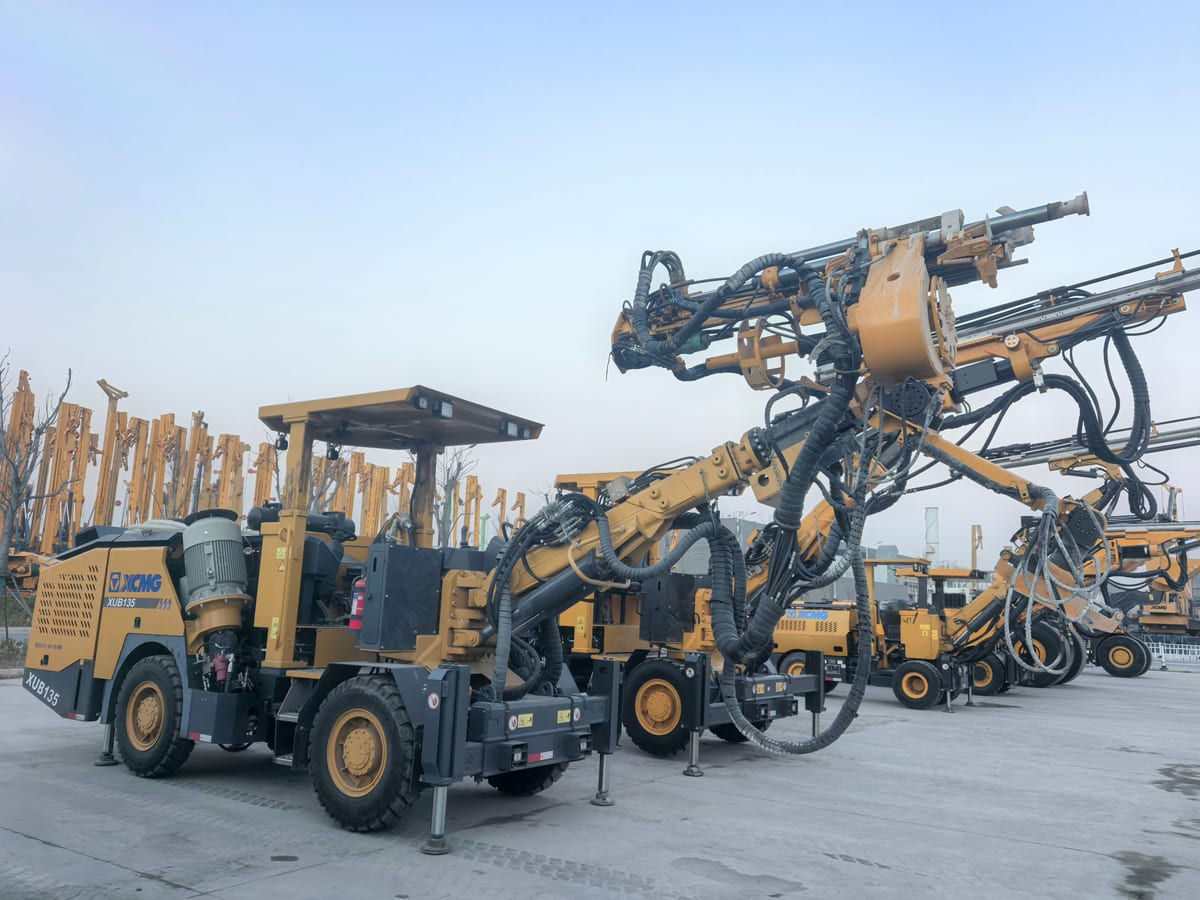

The SDSG XUB-series rock bolter is a hydraulic bolting rig for system, side and lock-foot bolt holes in non-explosive mine roadways. It integrates drilling, resin conveying and bolt installation in one compact, flexible machine suited to narrow workings, and works with pipe-seam or resin bolts. An imported rock drill delivers high drilling speed with low tool wear; a net-grab manipulator is optional.
Key Features
- Drilling, resin conveying and bolt installation in one machine
- Compact and flexible for narrow mine workings
- Handles system, side and lock-foot bolt holes
- Works with pipe-seam or resin bolts
- Imported rock drill — high drilling speed, low tool wear
- Optional net-grab manipulator
Applications
Rock Bolter — Specifications
| Model | Engine power | Operating weight | Bolt length | Transport size (mm) |
|---|---|---|---|---|
| XUB125 | 55.8 kW | 11.5 t | 1800–2000 mm | 9550×1600×2000 |
| XUB135 | 66 kW | 13.7 t | 1800–2500 mm | 10700×2065×2420 |
| XUB135B | 66 kW | 14.7 t | 1800–2500 mm | 10650×2050×2100 |
Specifications
| Operating weight | 11.5 – 14 t |
|---|---|
| Bolt types | Pipe-seam / resin |
| Drilling system | Hydraulic |
| Net-grab manipulator | Optional |
