Mining Excavator

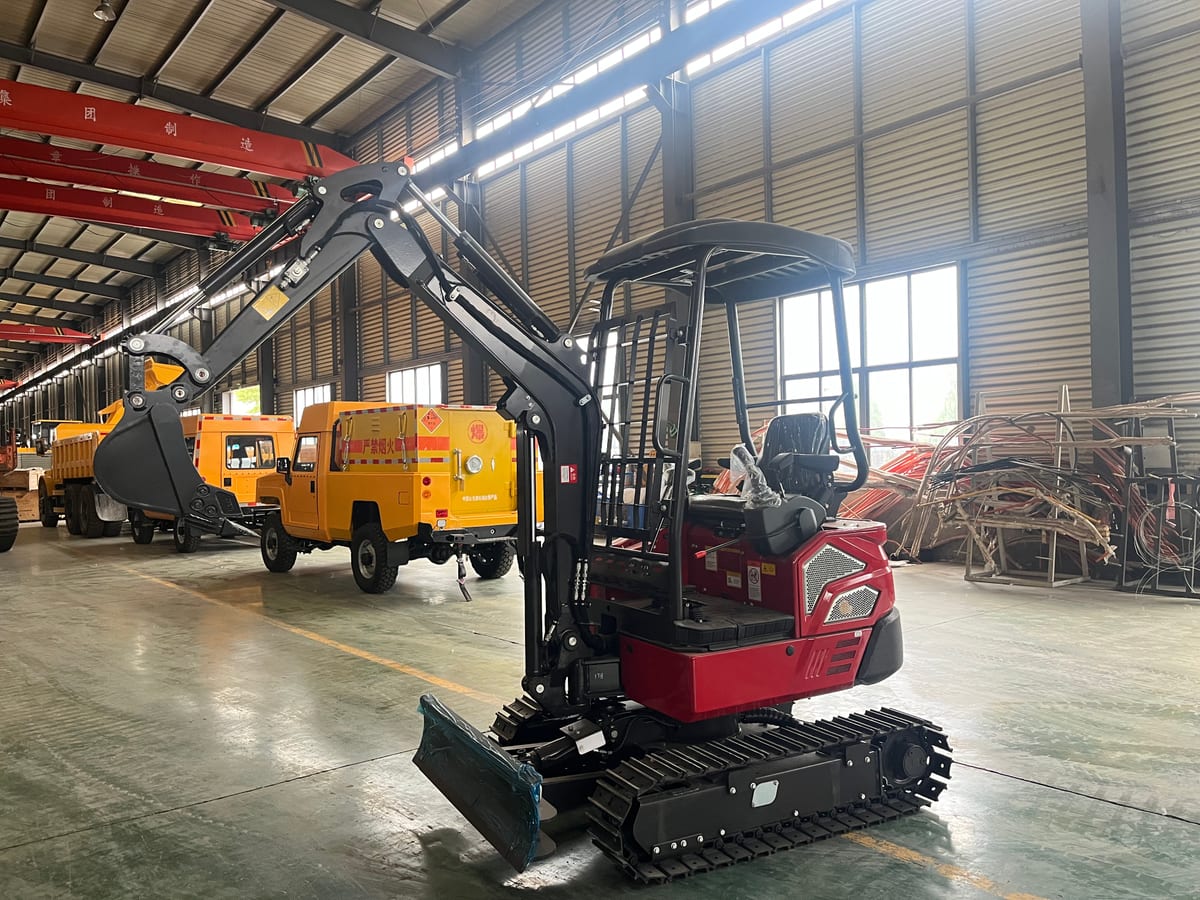

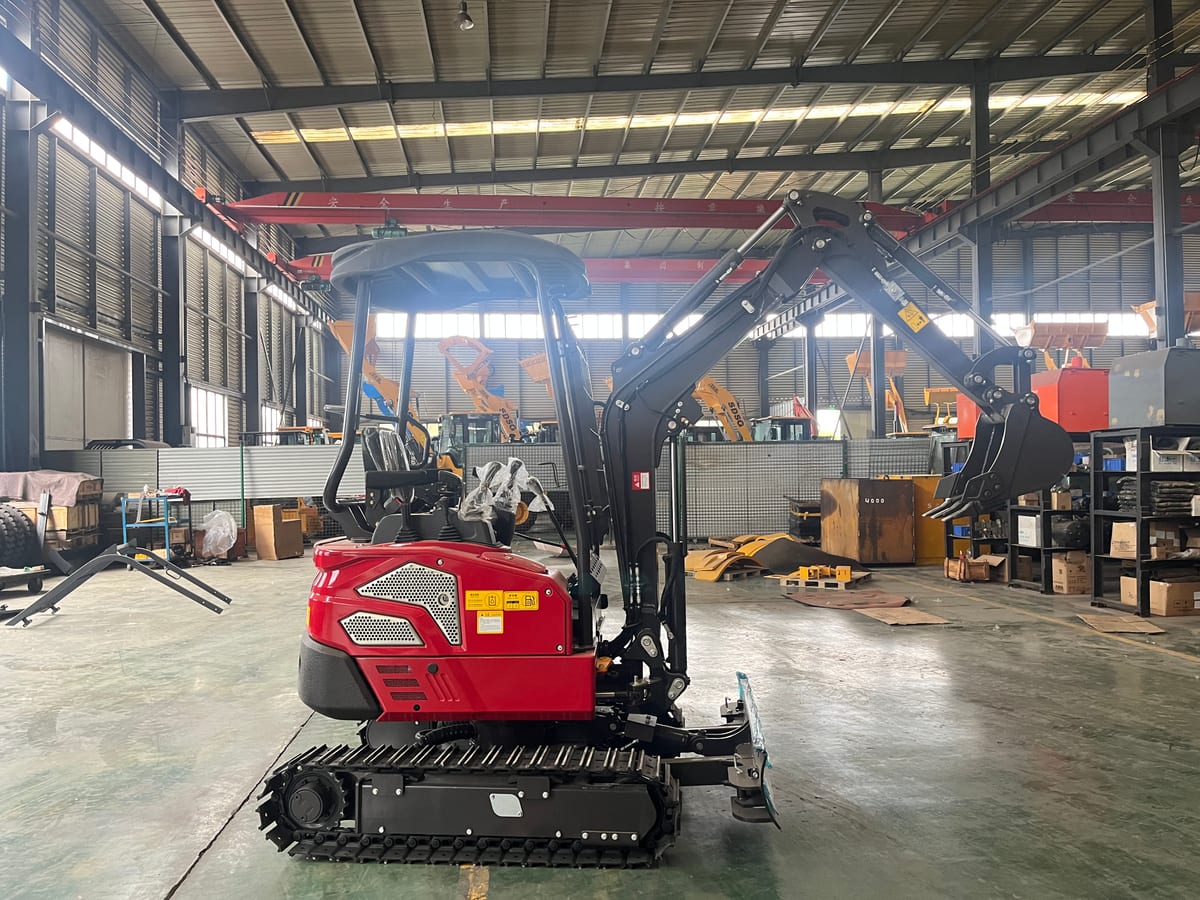

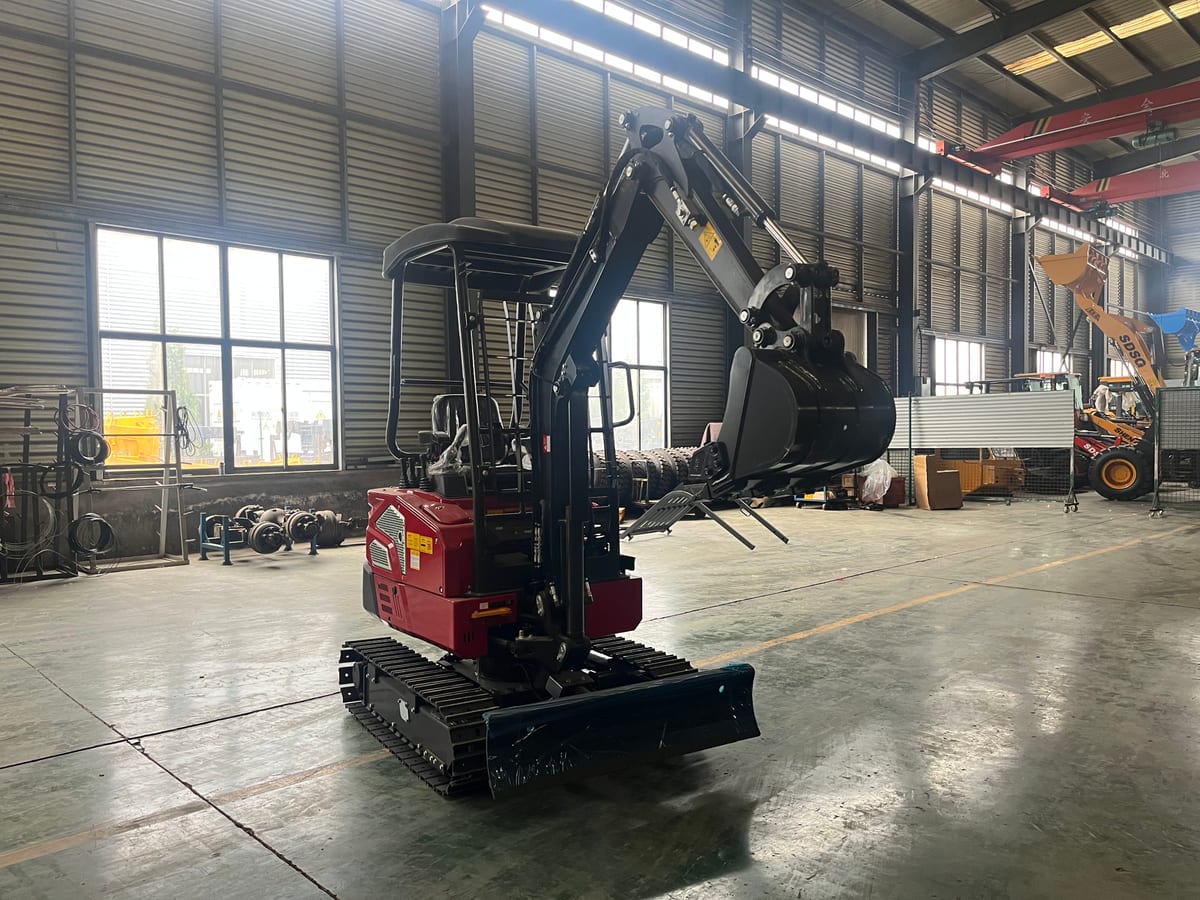

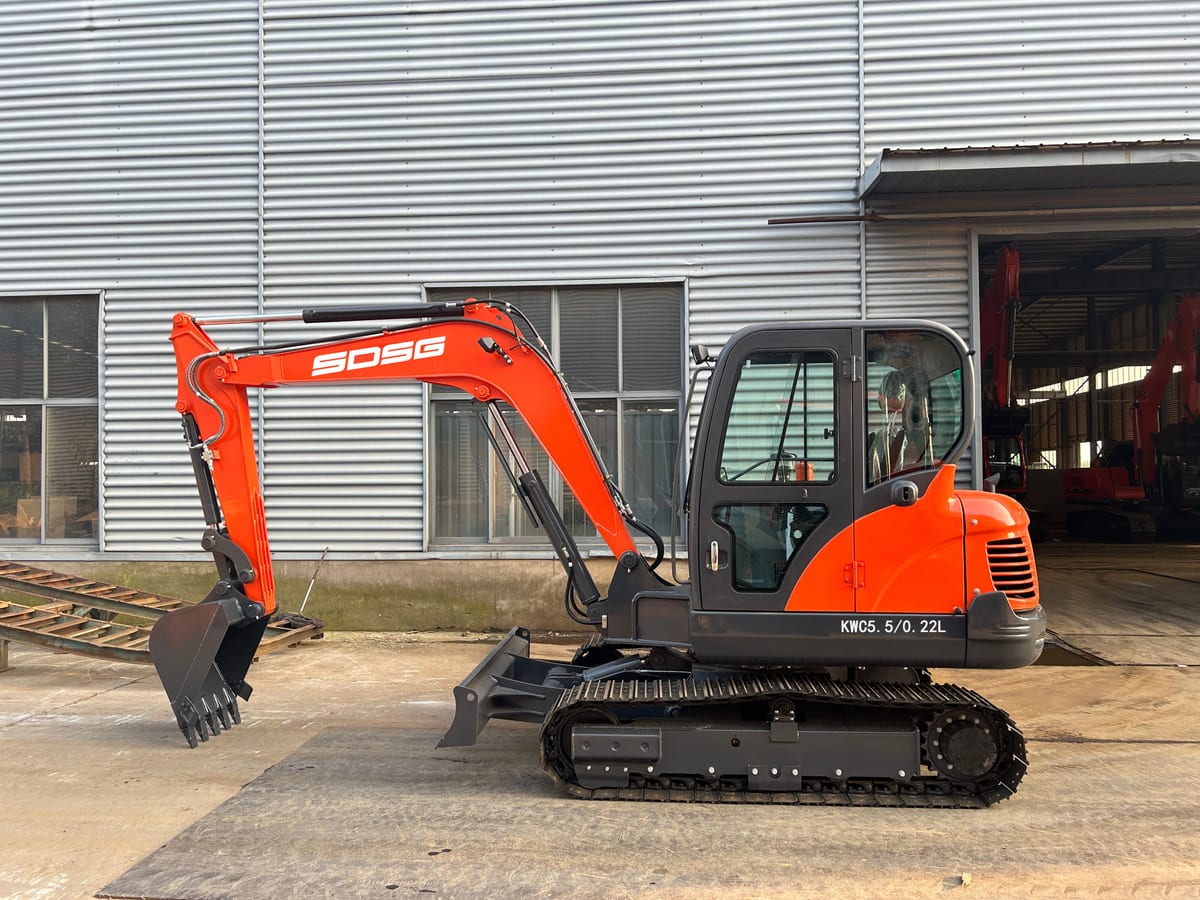

SDSG KWC mining excavators are crawler diggers built specifically for underground metal mines, tunnels and confined headings. The range covers the 1.92-ton KWC2.2/0.029L micro excavator — powered by a Kubota D1105 engine and compact enough for the narrowest drifts — and the 5.85-ton KWC5.5/0.22L, driven by a China IV Yanmar 4TNV94L with 0.22 m³ bucket capacity. Both run a mining-spec reinforced chassis with roughly 10% thicker steel plate and a lower centre of gravity for stability on uneven mine floors. Plunger-pump hydraulics and a backhoe front give strong digging force for mucking, trenching and rock work; breaker piping is standard, with a quick coupler, rotary drill and dozer blade available.

Request a Quote Inquire about this model

Key Features

Two mining-spec crawler models: 1.92 t KWC2.2 micro and 5.85 t KWC5.5 compact
Reinforced chassis with ~10% thicker steel plate and lower centre of gravity for underground stability
Backhoe front for digging, mucking and rock work in confined headings
Kubota D1105 (micro) and China IV Yanmar 4TNV94L (compact) diesel engines
Plunger-pump hydraulics with breaker piping standard
Optional quick coupler, rotary drill and dozer blade

Applications

Mining Excavator — Specifications

Model	Operating weight	Bucket	Engine	Power
KWC2.2/0.029L	1920 kg	0.029 m³	Kubota D1105	14.2 kW
KWC5.5/0.22L	5850 kg	0.22 m³	Yanmar 4TNV94L	39 kW

Specifications

Operating weight	1.92 – 5.85 t
Bucket capacity	0.029 – 0.22 m³
Engine	Kubota D1105 / Yanmar 4TNV94L
Rated power	14.2 – 39 kW
Max. digging depth	2.15 – 3.84 m
Max. digging reach	3.7 – 6.15 m
Max. digging height	3.28 – 5.63 m
Gradeability	30° / 30%
Working device	Backhoe
Emission	China IV (KWC5.5)
