Face Drilling Rig

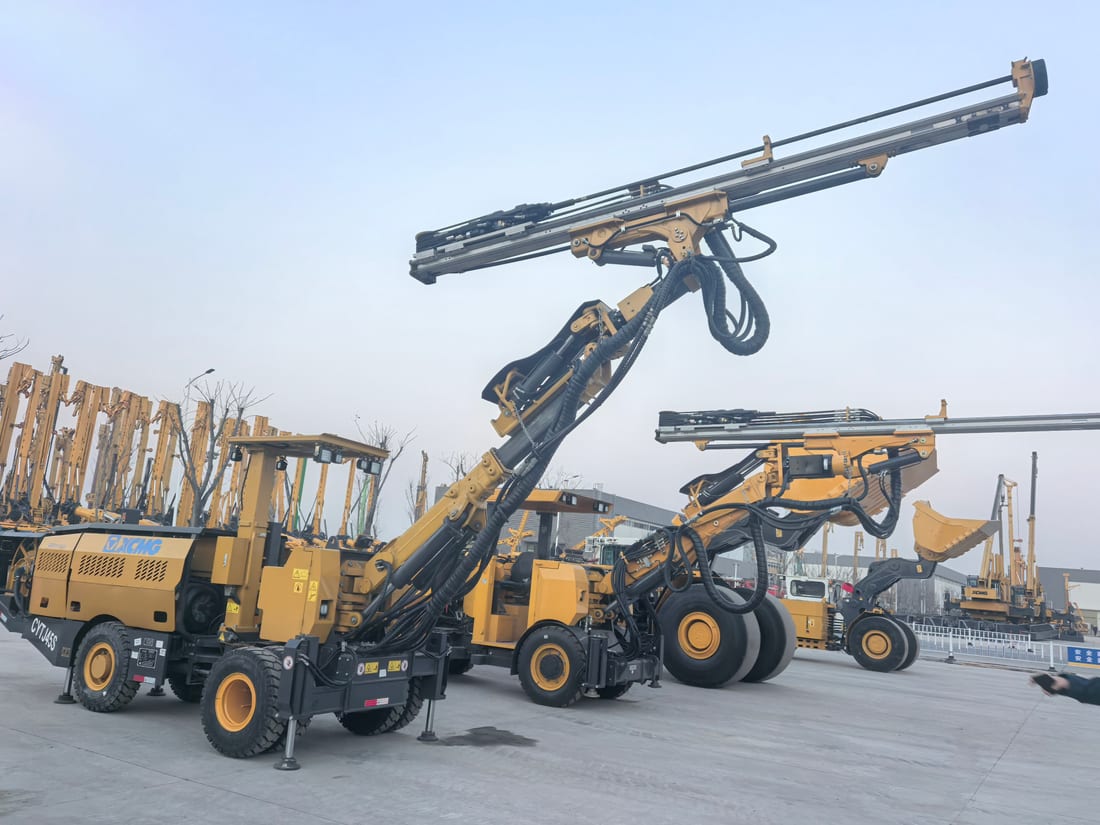

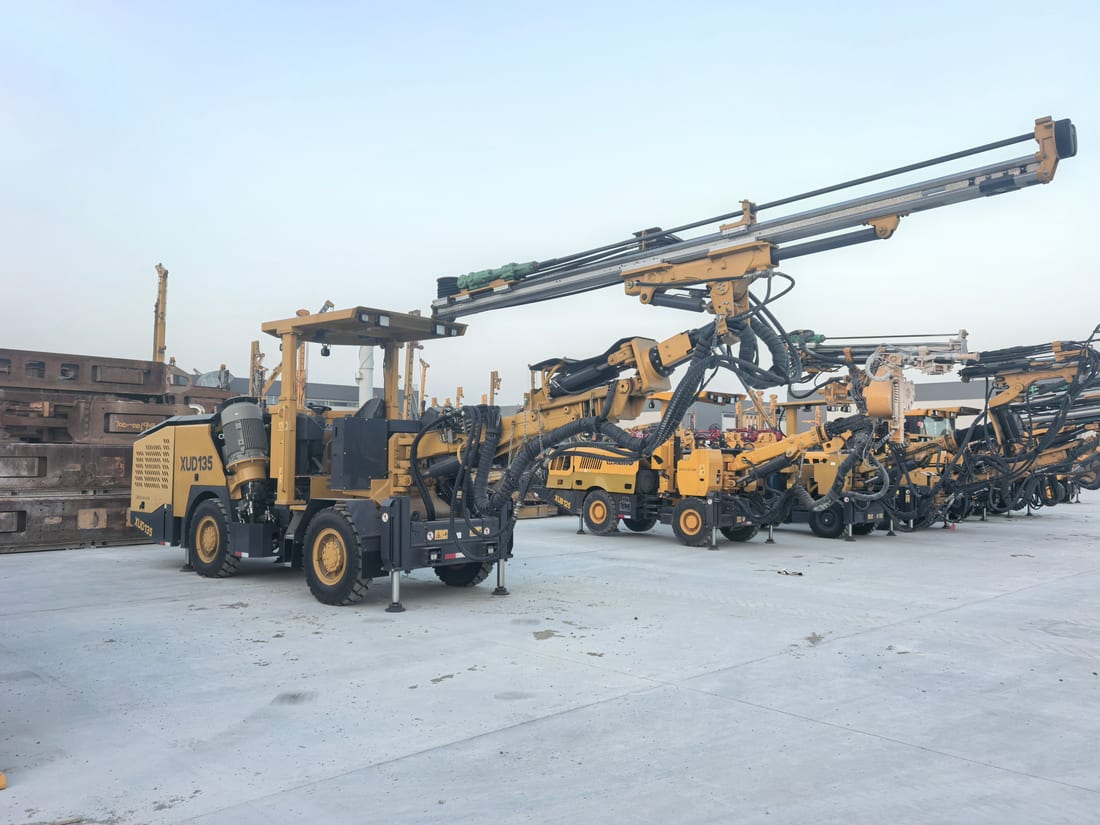

The SDSG XUD-series face drilling rig is a hydraulic tunneling jumbo for underground metal mines, tunnels and hydropower projects. Single- and double-boom models cover a 24–60 m² working cross-section, with anti-jamming, anti-idle drilling and automatic rod retraction for fast drilling and low tool wear. A light aluminium-alloy beam gives high bending, torsion and fatigue resistance.
Key Features
- Single- and double-boom models covering a 24–60 m² cross-section
- Anti-jamming and anti-idle drilling with automatic rod retraction
- Lightweight aluminium-alloy beam — high bending, torsion and fatigue resistance
- Fast drilling with low tool wear
- Hydraulic, pilot or computerized control options
Applications
Face Drilling Rig — Specifications
| Model | Engine power | Operating weight | Max. hole depth | Transport size (mm) |
|---|---|---|---|---|
| XUD125 | 55.8 kW | 10 t | 3400 mm | 10700×1300×2010 |
| XUD125B | 55.8 kW | 9.5 t | 3400 mm | 8350×1200×1600 |

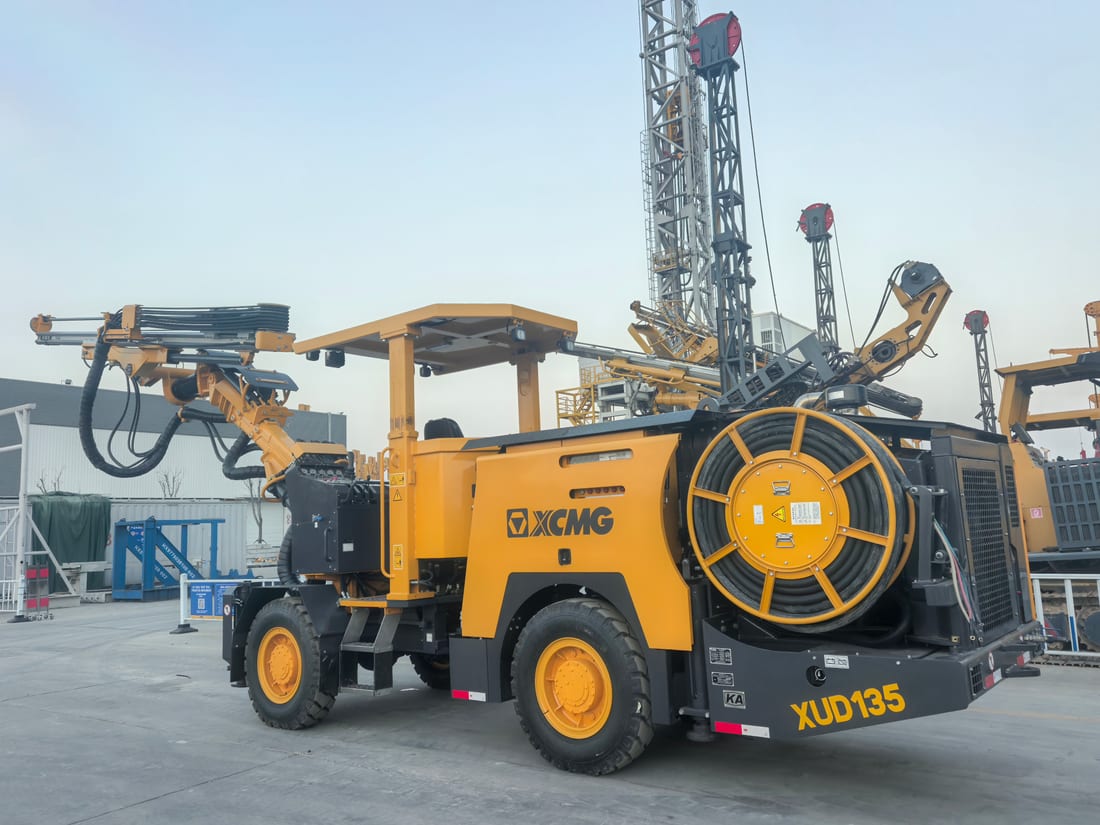

| XUD135 | 66 kW | 14 t | 4000 mm | 11860×2065×2420 |
| XUD135B | 66 kW | 14.4 t | 4000 mm | 11100×1750×2100 |
| XUD135C | 66 kW | 14.5 t | 4000 mm | 11100×1750×2800 |
Specifications
| Operating weight | 10 – 14.4 t |
|---|---|
| Rated power | 55.8 – 66 kW |
| Working cross-section | 24 – 60 m² |
| Boom configuration | Single / double boom |
| Control | Hydraulic / pilot / computerized |
Face Drilling Rig
